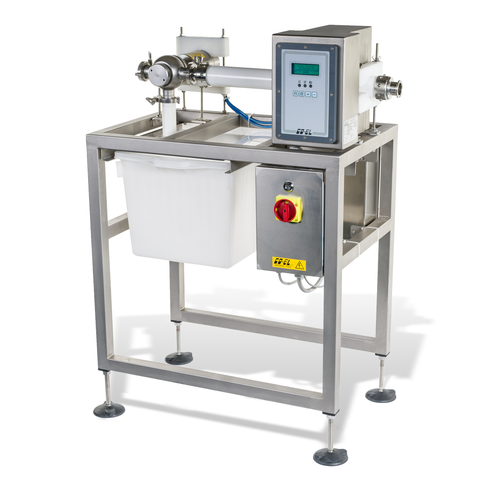

Metal detector for liquids and viscous products

Metal detector for liquids and viscous products CO-EL pipeline metal detectors are designed to inspect liquid, semi-liquid, slurry and high-viscosity fluid products in industrial applications dedicated to processing food and other items. Our pipeline metal detectors can detect all types of metals and ensure their removal from the process stream. Depending on the type of washing you sanitize, you can choose between IP65 and IP69 protection. The electromagnetic field signal analysis algorithm, enables detection of all types of metals (ferrous, nonferrous and stainless steel), filtering out product disturbance, even when the product is at high temperature and salinity. A special ejector valve made of AISI316 allows the portion of the contaminated product to be automatically discarded, the flow to be discarded: control via software guarantees fast and safe intervention times, ensuring minimum product loss. This metal detector finds application for the control of numerous products: fruit juices, tomatoes, honey, milk, processed cheese, slaughterhouse waste, chocolate, creams, etc. FEATURES: --------------- Passage diameter from 25 to 100mm Pipe connections type DIN, SMS, clamp, flanged Transit pipe made of food grade plastic, selected according to product characteristics and sanitation cycle Full passage valve in AISI316, max pressure 16bar Possibility of Pig transit for pipe and valve cleaning IP65 or IP69 degree of protection High detection capability of all metal types: ferrous, nonferrous, stainless steel Fast-acting automatic ejector valve, allowing for low system swallowing For production lines with low level of operator supervision Mounting possible with both horizontal and vertical pipe Custom support structures available for customized mountings
